The new Mountain High 1095 series of Dual Stage (cascaded) high stability regulators are ideal for performance-critical applications where pressure stability, repeatability and low drop out regulation of oxygen are important specifications as the supply runs down to nearly empty.
The dual stage regulator allows the useful pressure of a cylinder to be spent down to about 10 psi above the regulating pressure.
This will still yield the specified flow rate for the application while maintaining specified pressure and flow requirements.
It means that you can take advantage of the last bit of oxygen remaining. Whereas standard regulators have a minimum bottle pressure of 500psi, with the dual-stage regulator you can drain your bottle to roughly 50psi.
The dual-stage pressure regulators are compatible with all Mountain High portable Pulse Demand or Constant Flow oxygen delivery systems.
This DIN477-9 regulator feature the Push-to-Lock system for the 4mm red polyurethane tubing.
Delivery includes:
* pressure gauge (already mounted)
* 150cm red PU-tube
* Spare O-ring
* 1pc. 4mm straight outlet
* 1pc. 4mm 90° outlet

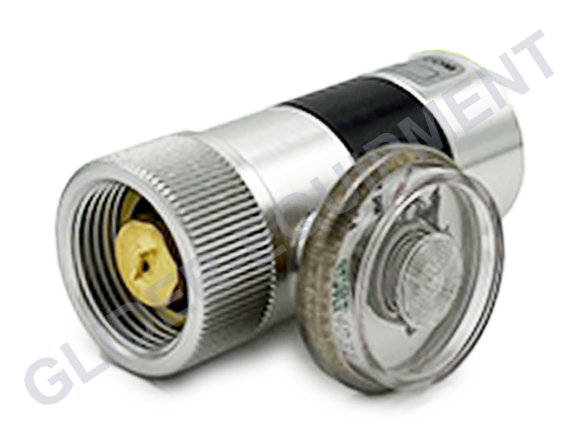

![MH regulator dual-stage Assy-2G DIN477-9 + gauge [00REG-1095-04] MH regulator dual-stage Assy-2G DIN477-9 + gauge [00REG-1095-04]](images/MH_regulator_dual_stage_Assy_2G_DIN477-9_00REG-1095-04_a.jpg)
![MH regulator dual-stage Assy-2G DIN477-9 + gauge [00REG-1095-04] MH regulator dual-stage Assy-2G DIN477-9 + gauge [00REG-1095-04]](images/MH_regulator_dual__Assy_2G_DIN477-9_gauge_00REG-1095-04_b.jpg)
![MH regulator dual-stage Assy-2G DIN477-9 + gauge [00REG-1095-04] MH regulator dual-stage Assy-2G DIN477-9 + gauge [00REG-1095-04]](images/MH_regulator_dual_stage_Assy_2G_DIN477-9_00REG-1095-04_c.jpg)
|
